Steps to follow
- The box you have received contains a CLISTEEV device, DC fan regulator, extension wire and a JST wire cable
- Also, you have got a connection diagram which you can share with the electrician for connection reference.
- Please Check below Links for “How To Install” video.

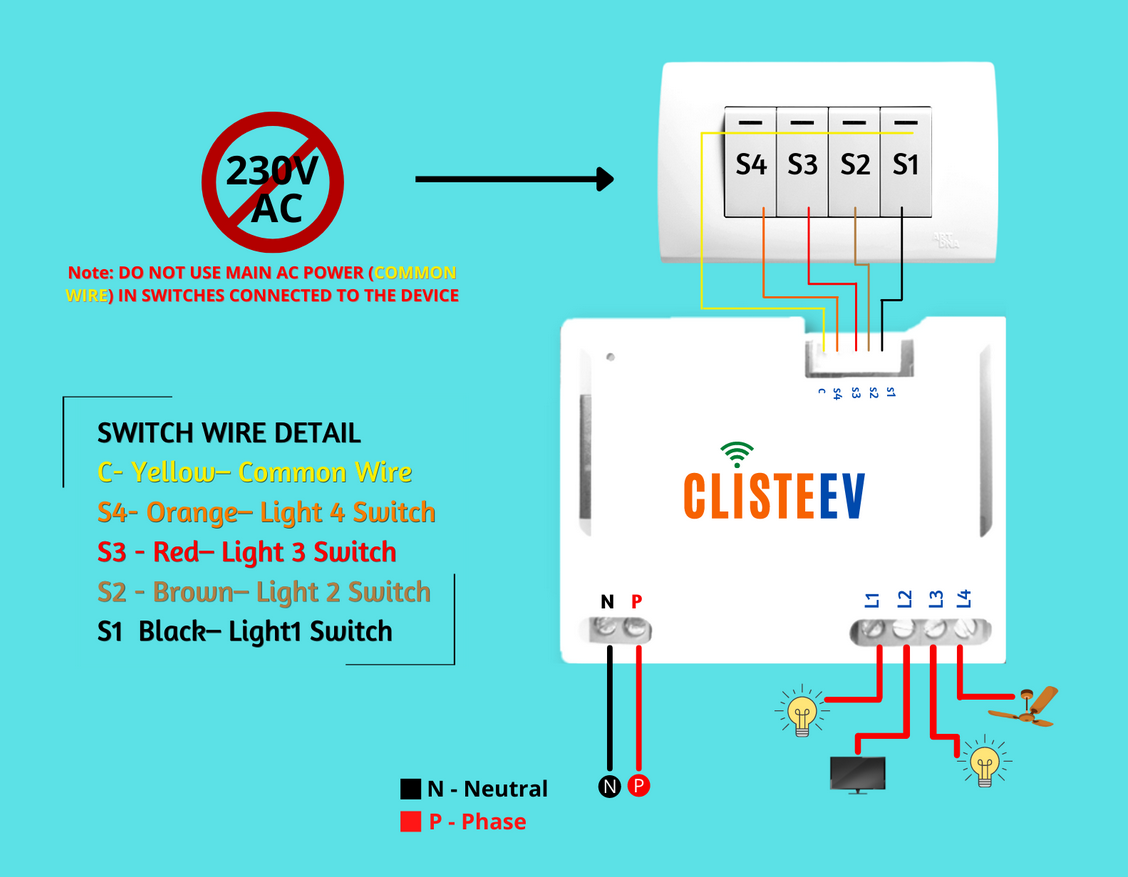

- Refer Wiring Diagram overleaf.
- We would recommend you take help of an electrician for making the necessary connections and for placing the device behind the switch board.
- There is a green indicator visible which shows the device is plugged in properly.
- Search for ‘CLISTEEV’ app on Google Play Store or Click on Below Link to install –
- Signup using mobile number and then enter OTP.
- Click on ‘Add Device’.
- Select the suitable method – QR Code (no Wi-Fi router) or Wi-Fi (if you have a Wi-Fi router).
- This mode to be used only when there is no Wi-Fi router installed at home.
- Configure your device in QR mode by pressing any switch for 7-8 times like On-Off-On-Off-On-Off-On-Off. You will hear a click sound and it is done.
- Connect your phone to Wi-Fi named as “CLISTEEV”, use “12345678” as password.
- QR code for scanning can be found on packaging box
- Move to Step 4
- Configure your device by clicking on any one switch for 5-6 times, like On-Off-OnOff-On-Off. You will hear a click sound and it is done.
- A fast green blinking LED will ensure that device is in Wi-Fi config mode.
- Got to phone Wi-Fi settings and connect with a 4G Wi-Fi connection available at your home.
- Come back to CLISTEEV app, Connected Wi-Fi name will be Auto reflected in the first text box.
- Enter Wi-Fi Password and name for your device.
- Click on Connect – Your device will be connected with Wi-Fi within 2 minutes.
- A continuous green light signifies successful connection with Wi-Fi.
- Click on ‘OK’ Button.
- Setup your device – Match the switches with the buttons in the device by checking the working and rename accordingly.
- Your device is now ready to use.
